pyrex borosilicate glass sheet

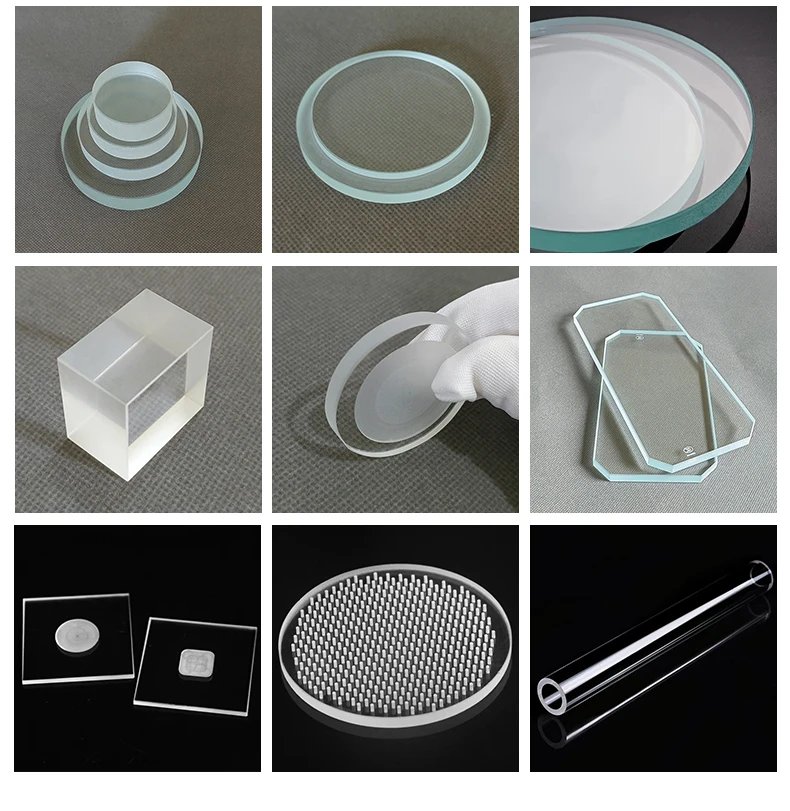

We are a manufacturer of Tempered Borosilicate 3.3 Round Sight Glass Plate
Size&design: Accept customize according to different diameter , thickness, length or sending your drawing
 |
Advantage of Tempered Borosilicate 3.3 Round Sight Glass Plate/Sheet/disc
1)The material is dense and does not absorb water.
2)Excellent acid resistance, alkali resistance and water resistance.
3)High hardness, abrasion resistance, dishwasher safe.
4)Does not contain harmful substances to the human body.
5)It is very easy to clean, not easy to stain, and it will be as clean as new after long-term use.
6)When used in a microwave oven, the heating is not hot, absorbs very little microwave, and saves electricity and energy.
7)It has the characteristics of resistance to rapid cooling, rapid heat, impact resistance, and non-fragility.
Product Description of Tempered Borosilicate 3.3 Round Sight Glass
 |
Densityρ: | 2.23± 0.02g/cm3 |
Hardness: | >7 |
Tensile strength: | 4.8×107Pa(N/M2) |
Thermal expansion coefficient: | (0-300℃) (3.3±0.1)x10-6K-1 |
Coefficient of thermal conductivity: | 1.2W×(m×k) -1 |
Specific heat capacity: | (20-100℃) 00.82kJx(kgxk) |
Light transmittance: | 92% |
Softening point: | 810±10 ℃ |
The resistivity1gρ | 250℃ 8.0Ω×cm |
Dielectric coefficientε | 4.7 |
Dielectric strength | 5 ×107V/M |
Dielectric loss factor | tanσ(MC20℃)≤38 ×10-4 |
Resistance to cold and hot shock | 280℃ |
Continuous working temperature | ≤550℃ |
 |  |  |
Borosilicate Glass Sheet Technique Index Sign:
1.Surface quantity:0/0,40/20 80/50
2.Surface accuracy:1/10 into,1/4 into2 into
3.Thickness business trip:±0.02mm
4.Center deviation:5Arc second1Arc Minute
5.Process the scope:The thickness is the most thin to attain 0.5mm
6.Coated
7.Tempered
