In fact, the working principle of solar tiles is the same as that of photovoltaic panels widely used in the construction field.
The main difference is the assembly: the photovoltaic panels are fixed to the existing roof, while the solar tiles are from the early stages of construction.
It's a part of the roof structure that takes the place of regular tiles.

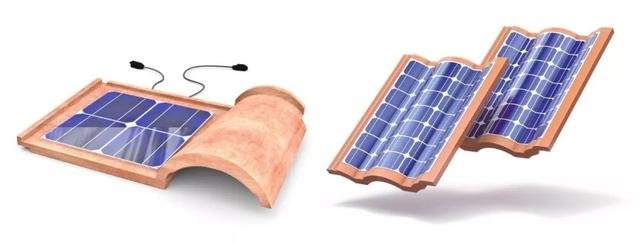

The tiles are made up of photovoltaic cells that generate an electromagnetic field after absorbing sunlight, providing electricity to the interior of the building
Each tile is connected to the switchboard by a cable.
In order to ensure the efficiency of tile operation, each tile needs to be installed with a converter that converts the generated energy into electricity.
Another way is to install a solar shunt or "home solar system", which needs to be installed under professional supervision.
In order to maintain the best results, it is important to maintain the cleanliness of the tiles. In addition, it is generally recommended to have the tiles laid out one by one
And avoid overlapping, so you can avoid overlapping areas, can not receive sunlight problems.

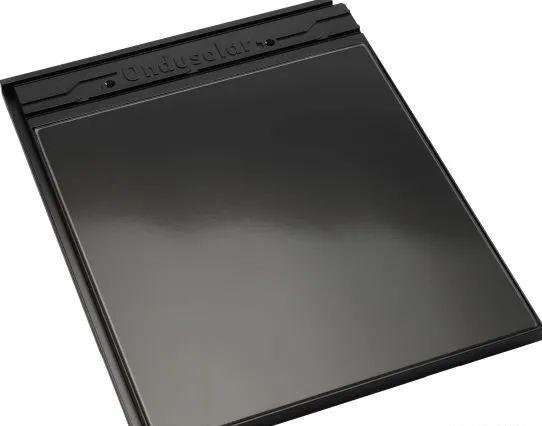

Solar glass technical characteristics
1, light weight, weight of about 15kg per square meter, only half of the traditional cement tile, ceramic tile (different manufacturers of weight will be different)
2, the installation is simple, with the traditional cement tile, ceramic tile installation method is completely consistent. The cable connection adopts the error-free connection design, and the operator only needs simple training to connect correctly;
3, has a high mechanical strength, can effectively cope with the normal construction and later maintenance of photovoltaic integrated roof, will not cause the cell crack;
4, itself has a strong durability, the battery sheet 30 years linear power output guarantee;
5, the edge adopts double protection, the photovoltaic module part is not damaged during transportation and installation;
6, special waterproof trench system design, high drainage efficiency, prevent rainwater backpouring;
7, strong wind resistance, meet the global roof building materials weatherproof performance test standards.
【 Advantage 】
- For areas with abundant solar energy, solar tiles are excellent renewable energy sources.
- Because they are added as part of the building rather than later, they are visually nicer and stealthier than traditional photovoltaic panels. The appearance of some solar tiles is even completely modeled after SLATE or porcelain, basically can not be found.
- They are a good choice for restoration of buildings in protected areas and/or historic areas (when alterations are approved).
