Cook Top Gas Stove machinable glass ceramic on Induction Cooker

PRODUCT DETAILS

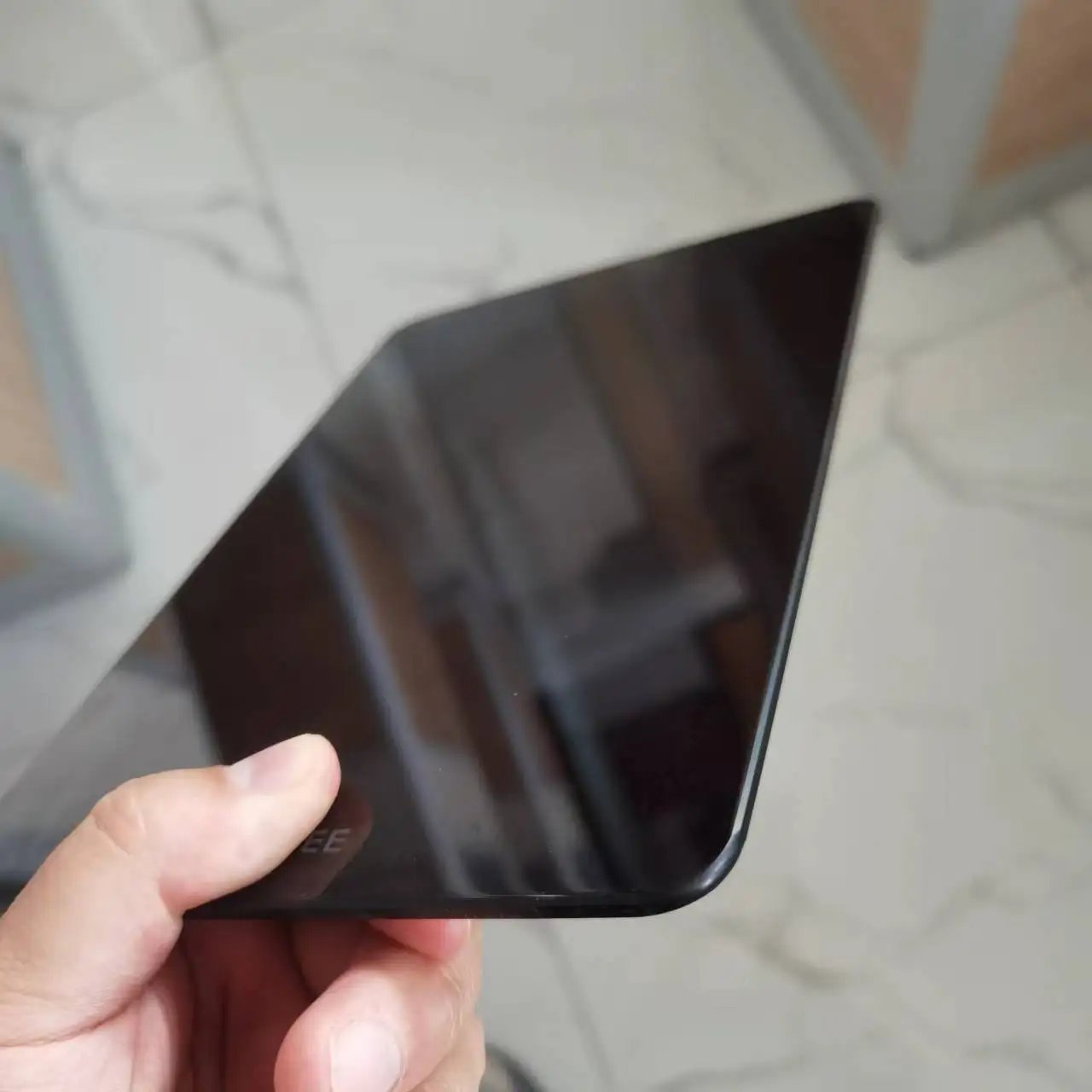

4mm 6mm Black Ceramic Glass Cooktop For Cooker

Ceramic glass is a crystalline material produced through controlled crystallization of base glass and has the fabrication advantage of glass as well special properties of ceramics.It is an extremely heat resistant glass.It is a mechanically strong material and can sustain repeated and quick temperature changes up to 660-850 degree centigrade.It is widely used for fireplace,micro oven screen,induction cooker.





-1_0002_1-48

-1_0000_1-63

 Ceramic glass features

1.Glass ceramic is rsisting to heat and cold, even to extreme temperature changes.This extraordinary property enables a variety of applications: cooking on glass ceramic appliances day after day , and protecting your fire places or stoves, still enjoying flames view.

 2.Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops.


Density ρ

approx. 2.6 g / cm3

Modulus of elasticity E

approx. 93 x 103 MPa

Bending strength  σbB

approx. 35 MPa



Coefficient of Linear Thermal Expansion  α(20 - 700°C)

 (0 ± 0.5) x 10-6 /K

Specific Thermal Capacity  (CP20 - 100°C)

0.8x103J/(kg x k)

Specific Thermal Conductivity λ(90°C)

1.6W/(m x k)

Resistance to Thermal Gradients(RTD)

Tes, max1) ≤ 700°C

Resistance to Thermal Shock

Tes, max ≤ 700°C

Working temperature

760°C


Mechanical

strength

Density

Elastic seeks

Bending strength

2.6g/cm³

93*103Mpa

35Mpa



Thermodynamic Performance

Average coefficient of linear thermal expansion

Identical

temperature difference

Thermal shock resistance

a(20-800℃):(0±0.5)*10-6/K

(RTD) ≤760℃

Tes max≦760℃ no break



Application Temperature and Continuous operating time

Application temperature

Continuous operating time

560℃

20000h

610℃

9000h

660℃

4500h

710℃

1200h

800℃

500h

Chemical

performance

Acid resistance

Alkali resistance

DIN12116 HGB1

DIN ISO719 HGB2

Glass Variety

Transparent microcrystalline glass,Dark brown microcrystalline glass with ball-point

Machinable

shape

Square,circle,R-corner and any irregular shape

microcrystalline glass Application

Wave soldering, microwave oven, Convection Oven, electric radiator,

fireplaces, induction cooker glass plate. High-Performance flood light, metal halide lamp, infrared dryer,etc and Photovoltaic solar equipment shield



The dimension of the glass-ceramics for induction?

With the increase in gas prices, the cost of the catering industry, and the perception of cooking without open flames, the number of commercial induction cookers has increased. The demand for concave glass-ceramics will also increase accordingly. Commonly used thickness of 12 ~ 20mm commercial induction cooker plane microcrystalline glass plate conventional size: 250 × 250mm, 300 × 300mm, 350 × 350mm, 450 × 450mm, 500 × 500mm, 600 × 600mm and so on. The conventional dimensions of the concave glass ceramic used in the commercial induction cooker are: diameter 200 mm, diameter 300 mm, diameter 400 mm, diameter 500 mm, and the like.
